90JW/JB/80ZY115
Permissible Load Range: 20N.m
Product details
Description of The Product
Mixed configuration, 1:10 eccentric shaft gearbox is equipped at the front of worm gearbox to increase total drive ratio and achieve lower speed. Total ratio equals to the product of the two gear ratios.

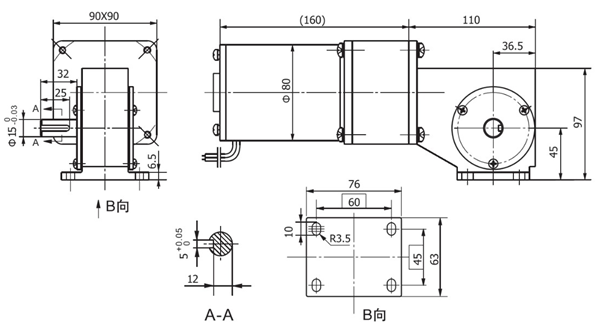

Dimensions
Remarks:Standard product is left output shaft, right output shaft is available upon request.
Motor Technical Data
Type | Rated voltage VDC | No-load speed r/min | No-load current A | Rated speed r/min | Rated Torque mN.m | Output power W | Rated current A | Stall torque mN.m | Stall Current A |
80ZY115-1225 | 12 | 2500 | 1.5 | 2000 | 0.4 | 84 | 10 | 1.5 | 30 |
Gear Motor Technical Data
80ZY115-1225 DC moto
Reduction ratio | 125 | 160 | 250 |
Number of threads | 2 | 2 | 1 |
No-load speed r/min | 20 | 16 | 10 |
Rated speed r/min | 16 | 13 | 8 |
Rated torque N.m | 16 | 20 | 20 |
Permissible load N.m | 40 | 40 | 40 |
